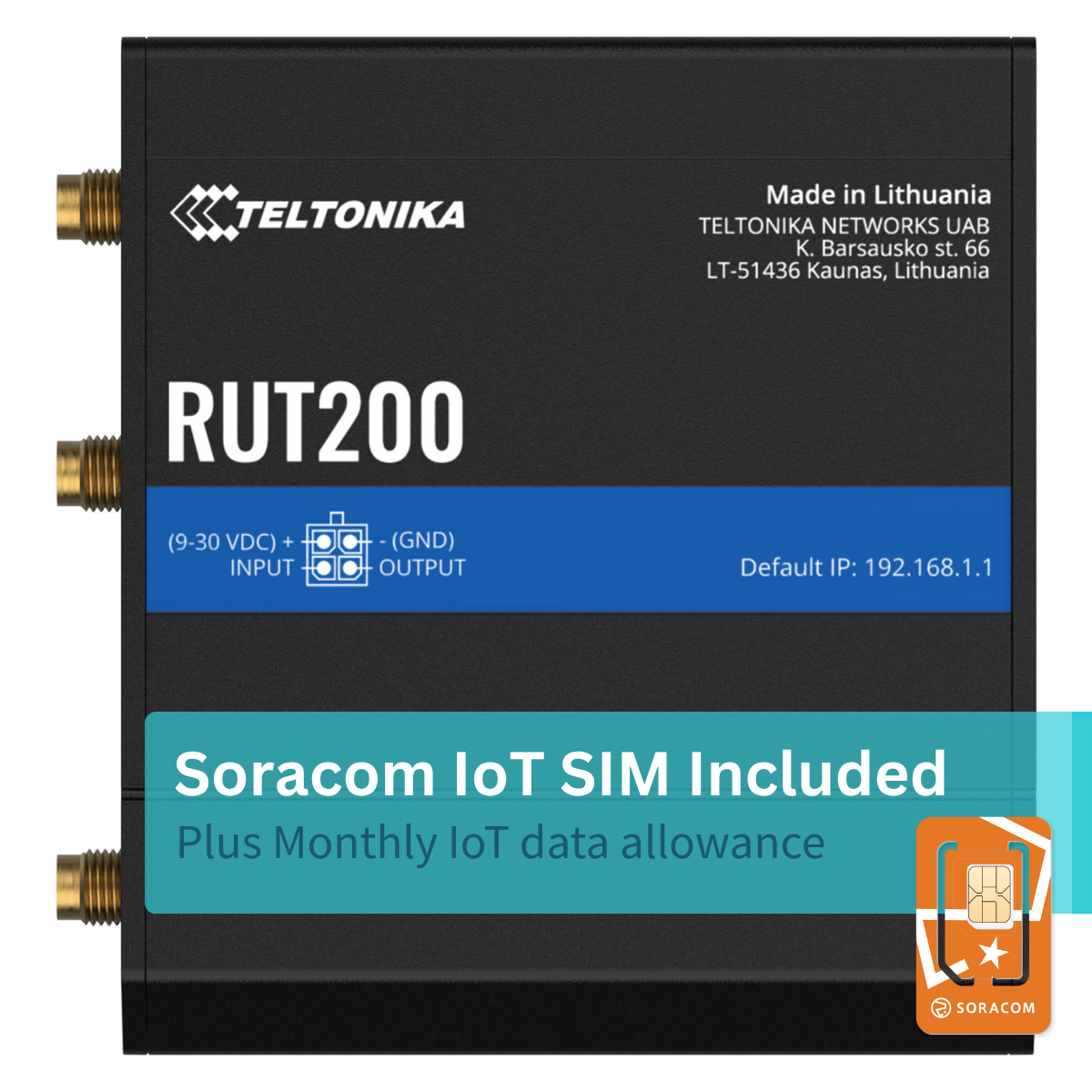

RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.
RUT200 brings the top-rated features of the bestseller RUT240 and is compatible with networks in Europe (excluding Russia and Belarus), Australia and Asia-Pacific. Due to its compact size, industrial design, and I/Os, this model is very suitable in manufacturing, automation, transportation, and other industrial application scenarios that require mission-critical connectivity in rigorous conditions.
Features
- Connectivity:
- 4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28
- 4G (LTE-TDD): B38, B40, B41
- 3G: B1, B5, B8
- 2G: B3, B8
- CWI-FI: Wireless Access Point with Hotspot functionality
- CWAN Failover: Automatic switching to available backup connection
- CCompactness: Small size, easy integration
- CI/O: Digital Input/Output for remote monitoring and control
- CRMS: For remote management, access & VPN services
Includes Soracom SIM Card with monthly IoT Data
These Teltonika RUT200 SKUs are shipped with a Soracom SIM Card that provides market-leading IoT coverage for deployments across Europe (check coverage).
You can choose from the IoT data plans shown below. The cost of the kit includes the Teltonika RUT200, SIM card, 12 months of IoT data and Soracom services.
- 500MB/Month x 12 Months – €99.00
- 1GB/Month x 12 Months – €119.00
- 3GB/Month x 12 Months – €155.00
- 5GB/Month x 12 Months – €195.00
- 10GB/Month x 12 Months – €285.00
What’s in the box?
Standard Package Contains
- Router RUT200
- 9 W PSU
- 2 x LTE antennas (swivel, SMA male)
- 1 x WiFi antenna (swivel, RP-SMA male)
- QSG (Quick Start Guide)
- Packaging box
For a full overview of all Technical Specifications for this product, please see RUT200 Datasheet from Teltonika
| Hardware Specifications | |
| Mobile | 4G (LTE) – Cat 4 up to 150 Mbps, 3G, 2G |
| CPU | Mediatek MIPS 24Kc 580 MHz |
| Storage | 16 MB Flash |
| Memory | 128 MB RAM |
| Powering option | 4pin power socket, 9-30 VDC |
| SIM | 1 x External SIM holder (2FF) |
| Antenna connectors | 2 x SMA for mobile, 1 x RP-SMA for WiFi |
| Ethernet | 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN |
| WiFi IEEE | IEEE 802.11b/g/n, Access point (AP), Station (STA) |
| Inputs/Outputs | On 4pin socket: 1 x Digital input, 1 x Digital open collector output |
| Status LEDs | 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power |
| Operating temperature | -40 °C to 75 °C |
| Housing | Aluminium housing with DIN rail mounting option, plastic panels |
| Dimensions (W x H x D) | 83 x 25 x 74 mm |
| Weight | 125 g |
| SKU | Teltonika RUT200 with UK PSU: RUT200 013000 Teltonika RUT200 with EU PSU: RUT200 010000 |
